Videojet® 2300 Series

The Videojet 2300 Series is a family of three high resolution, large character ink jet printers that provide class-leading, consistent print quality on porous and secondary packaging materials. These systems are designed and manufactured to reliably print accurate, high quality, real time alphanumeric codes, bar codes and graphics. Available in a range of printhead heights to best suit your printing needs, the Videojet 2300 Series replaces pre-printed boxes and labels with a highly flexible, cost effective printing solution.

Specification Value
Print Speed
Bar Code Printing 0.3 – 33 m/min (1.0 – 108 ft/min)
Alphanumeric Text Up to 132 m/min (433 ft/min)
Print Area (Height x Length)
  2340 Model 17 x 2000 mm (0.7 x 78 in)
  2350 Model 53 x 2000 mm (2.1 x 78 in)
  2360 Model 70 x 2000 mm (2.8 x 78 in)
  2340 Model 17 mm (0.7 in) high 180 dpi
  2350 Model 53 mm (2.1 in) high 180 dpi
  2360 Model 70 mm (2.8 in) high 180 dpi
User Interface CLARiTY™ 5.7 inch color LCD touch-panel
Data Interfaces RS232, Ethernet, USB memory stick, select ZPL command emulation,
Binary and text comms
Master/Slave Functionality Up to 4 printers

Uptime Advantage
  • New print array with each cartridge change, ensuring peak performance
  • No wear parts or maintenance consumables; no calibration procedures
  • Designed and tested for 99.9% Availability*
  • Rugged, industrial design made to withstand challenging production environments
Consistent Print Quality Protects Supply Chain Integrity
  • Patented Micropurge process automatically purges ink in programmable intervals to help keep the printhead free of dust and debris, helping to ensure the best print quality
  • Scannable bar codes can be printed on-demand, including GS1 standards for ITF-14 and Code 128
  • Videojet pigmented inks, available in a variety of colors, provide good edge acuity
Uptime Advantage and Built-in Productivity Save Time and Money
  • Begin printing within one minute of powering up for quick daily startups
  • Micropurge process and fluid container design help ensure very high ink utilization, minimizing ink waste and mess, while saving money
  • Print density can be optimized on a per job basis to optimize operating costs and to allow standardization on one printer type for both high and moderate print quality applications
Simple Usability Keeps Operators Focused on Production, Not The Printer
  • Printer can operate in standalone mode using intuitive interface or be networked to PLCs or factory management systems for centralized control
  • Data interfaces include Ethernet, RS232, USB, select ZPL command emulation, and text communication
  • Connect packaging and printer controllers for web browser functionality of standalone machines
  • Master/slave functionality allows up to four printheads to be controlled from one controller for more efficient job management
Seamless Integration With Other Videojet Products
  • Single point message selection is delivered to multiple devices
  • CLARiNET® software connects all Ethernet devices, scanners, throughout the production floor

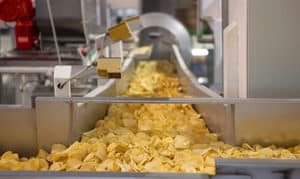

Meat and Poultry Salty Snacks
